Dry Carbon Fiber Upgrades for the BMW M3 F80 and M4 F82
The F80 M3 and F82 M4 occupy an awkward position in BMW's lineup. They brought a stiffer chassis and available S55 power, but the F80's Designworks styling took years to be accepted. Six years into ownership now, the early buyers are deep into the modification cycle — and for the panels that were originally painted gloss-black plastic, dry carbon has become the default answer.
The reason is straightforward. Gloss-black plastic on a car with the F80's surface tension looks thin after a few winters. It fades unevenly. It takes stone chips. Mirror caps develop a haze that polishing never fully removes. Prepreg carbon solves all three problems at once: fully cured resin that won't fade, a genuine weight saving, and a 3K twill weave that reads as a material rather than a finish.
We stock the pieces below for the F80 and F82 chassis codes, from a $21 gear shift knob cover to a $313 dry carbon seat back panel set.
Dry Carbon, Real Carbon, and Forged Carbon — What's Actually Different
The aftermarket uses these terms loosely, and the difference is not cosmetic. It determines the price more than anything else.
Prepreg (dry carbon) is what BMW and legitimate aero suppliers use. Fibres are impregnated with resin in a film, laid into a mould, and cured under heat and pressure in an autoclave. The weave is locked in place by the resin. Roughly 60% resin by weight, 40% carbon fibre.
Wet carbon saturates fibres with resin at ambient pressure. More resin ends up in the finished part. It appears lighter than painted plastic but sits noticeably heavier than prepreg, and the weave often distorts slightly during cure.
Forged carbon compresses short fibre strands under pressure, producing a marbled random pattern. It does not run with the body lines. Visually it is a statement on its own — but it is not a substitute for prepreg when you want the weave to follow the panel.
Real carbon overlay bonds a thin prepreg veneer to an ABS or plastic carrier. The visible face is genuine carbon; the core is not. For a fender vent badge or a mirror cap, the result is visually indistinguishable from full prepreg at a fraction of the cost.
A full prepreg mirror cap and a real-carbon-over-ABS mirror cap can look identical in a photograph and differ by 60–80% in price. Know which one you are buying.
The Three-Stage Upgrade Path
Stage 1 — Small Parts, Immediate Effect
The entry point. These sit at eye level and on the highest-contrast surfaces on the body, so they change the car's read more than their size suggests.
Real Carbon Fiber Gear Shift Knob Cover — $21.15 The cheapest way into carbon on these cars. Also fits M5 and X5. No functional difference to the plastic original beyond the material change, which is precisely the point at this price.
Carbon Fiber Fender Air Vent Badge — $52.59 3K twill weave prepreg with a real carbon face and matching weave alignment across the vent surround. The fender vent is a small surface framed by body-coloured paint, so the weave reads very clearly against it.
Bull Horn Carbon Mirror Caps — $74.84 / $176.96 The extended "bull horn" profile visually lengthens the mirror line and removes the largest painted-plastic surface on the upper body. Available in two versions: a stick-on overlay at $74.84 that bonds to your original cap, and a full replacement cap at $176.96 that replaces the housing entirely for a seamless weave across the whole mirror.
If you are working to a budget, this is where it goes. Three parts, under $250 combined, and the car looks built rather than badged.
Stage 2 — Lower Body and Aero
Once the small parts are done, the next visible change comes from the lower body and the corners.
M-Style Side Skirts — $51.05 Fits the F80 M3 specifically. Straightforward fitment to the factory mounting points.
MP Carbon Corners and Canards — $100.05 F80 and F82. The most aggressive of the corner pieces and the one that most visibly changes the silhouette. Canards in particular read very differently from the standard bumper at a glance.
MP Carbon Bumper Corner Trim / Splitters — $120.89 F80 and F82. Adds visual width at the front corners and reduces the visual mass of the standard bumper.
Tri-Color Carbon Grille — $116.53 / $120.69 / $249.93 F80 and F82. Three colourways. The standard weaves sit at the lower two price points; the tri-colour option uses a layered weave with dyed strands and is priced accordingly. This is a purely aesthetic choice — the tri-colour version does not add performance, it adds visual distinctiveness.
MP Style Carbon Parts — $458.58 F80 and F82. A package covering the exterior aero set. At this price point it works out considerably below the sum of the individual pieces if you were buying the full set anyway.
Stage 3 — Interior and Weight Reduction
This is where the money goes and where the largest weight saving is.

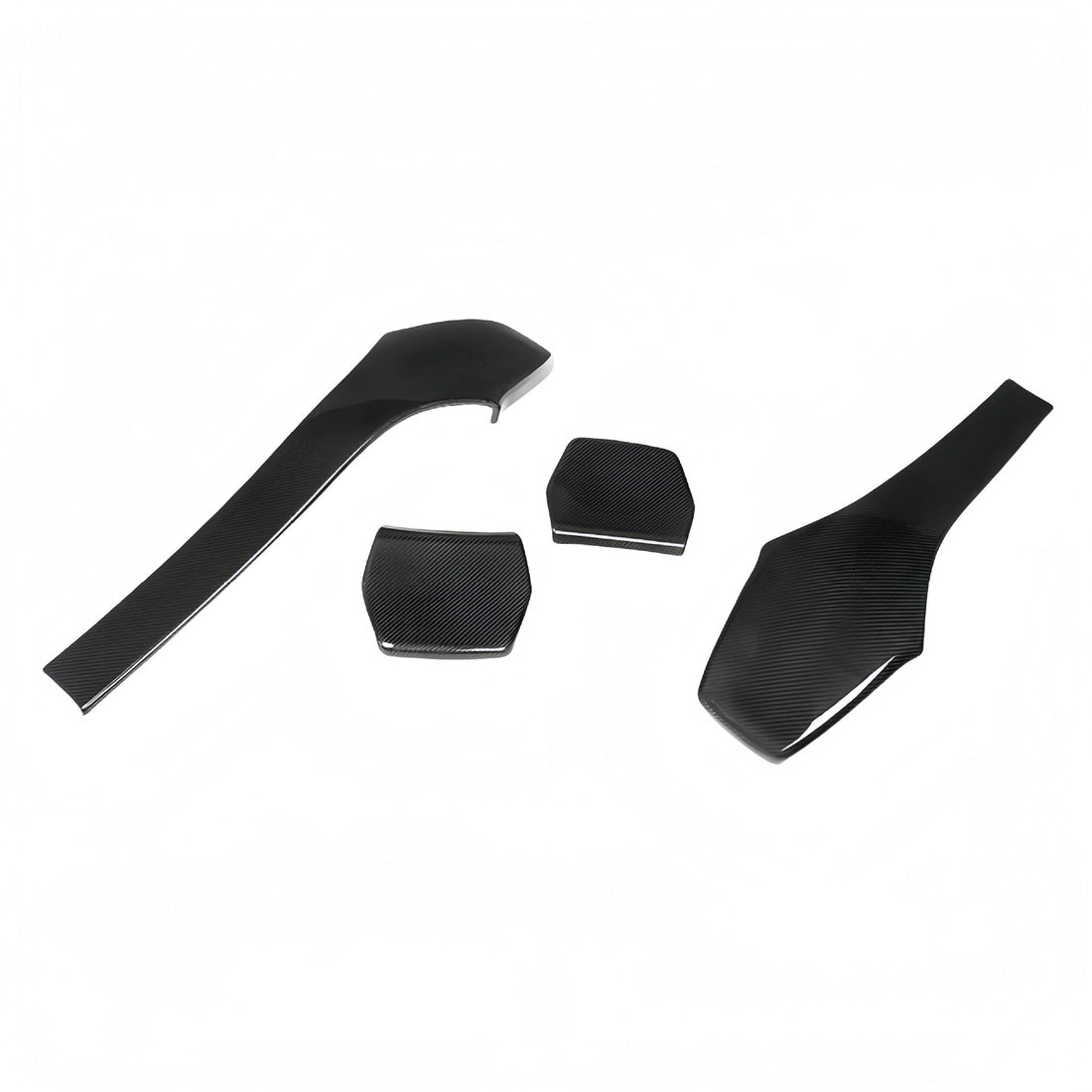

Dry Carbon Seat Back Panels — $312.65 F80 M3 and F82 M4. The rear-facing surfaces of the front seats, visible through the rear glass. These are among the largest dry carbon panels available for these cars, and they produce a real weight saving over the painted plastic originals. If you see the F80 or F82 from behind at a car meet, these are what people notice first.
What This Generation Is Not Compatible With
This matters more than anything else when ordering, because the F-series chassis codes are easy to confuse and the panels are not interchangeable across them.
- Not for the F83 M4 Convertible. The F82 coupe and F83 convertible have different rear body panels and different trim geometry. Only the F82 coupe range fits.
- Not for the F87 M2. The F87 shares the S55 engine and the F8x platform code, but the body panels and mounting points differ.
- Not for the G20/G21 3 Series. A different generation entirely.
- Not for the G80/G81 M3 or G82/G83 M4. These are the current-generation equivalents with different panel geometry throughout.
If your chassis code begins with F80 or F82, the parts listed here apply. If it begins with F83, F87, G20, or G8x, it does not.
Prepreg, Real Carbon, or Forged — Choosing the Right One
Choose dry prepreg when the part is large or structural — side skirts, seat back panels. Weight reduction is the goal and you want the OEM-style 3K twill weave.
Choose real carbon overlay when the part is small and purely visual — vent badges, gear shift knob covers. You want the visual result without paying for full prepreg, and the part carries no load.
Choose forged carbon when you want a distinctive marbled pattern and accept that the weave will not match the body lines. On a mirror cap specifically, forged carbon is often more striking than prepreg and cheaper than a full prepreg part.
The rule is not "dry is always best." For a $21 knob cover, real carbon overlay is the correct answer and full prepreg would be absurd. For a $313 seat back panel set, prepreg is the only answer worth considering.
Practical Considerations
Weight. A full set of dry carbon panels across these cars typically removes 8–15 kg depending on which pieces are replaced. The seat back panels and side skirts contribute the largest share of that figure.
Finishing. Dry carbon arrives with the factory clear coat cured. It can be wet-sanded and polished like any other high-quality paint finish, but there is no need to do so unless you intend to correct minor surface variation.
Care. Carbon panels clean with the same products as painted bodywork. Avoid abrasive pads on the clear coat, particularly across a 3K twill weave, where you can cut into the fibre surface.
Fitment. All parts listed fit F80 and F82 chassis codes only. Fitment is not transferable between F-code variants.
Where to Start
If you are building an F80 or F82 from stock, this is the sequence that gives the most visual return per dollar:
- Gear shift knob and fender vent badge — under $75 together, immediate visible change
- Mirror caps — the single largest visual upgrade on the upper body
- Side skirts or front corner aero — changes the car's stance
- Seat back panels — the largest weight saving and the most visible interior element
Working in that order means each stage makes the next look better, and stopping at any point leaves the car looking deliberate rather than unfinished.
Fitment note: Products described here fit BMW M3 F80 and M4 F82 chassis codes. They are not compatible with the F83 M4 Convertible, F87 M2, G-series 3 Series, or G80/G82-generation M3 and M4 models.
